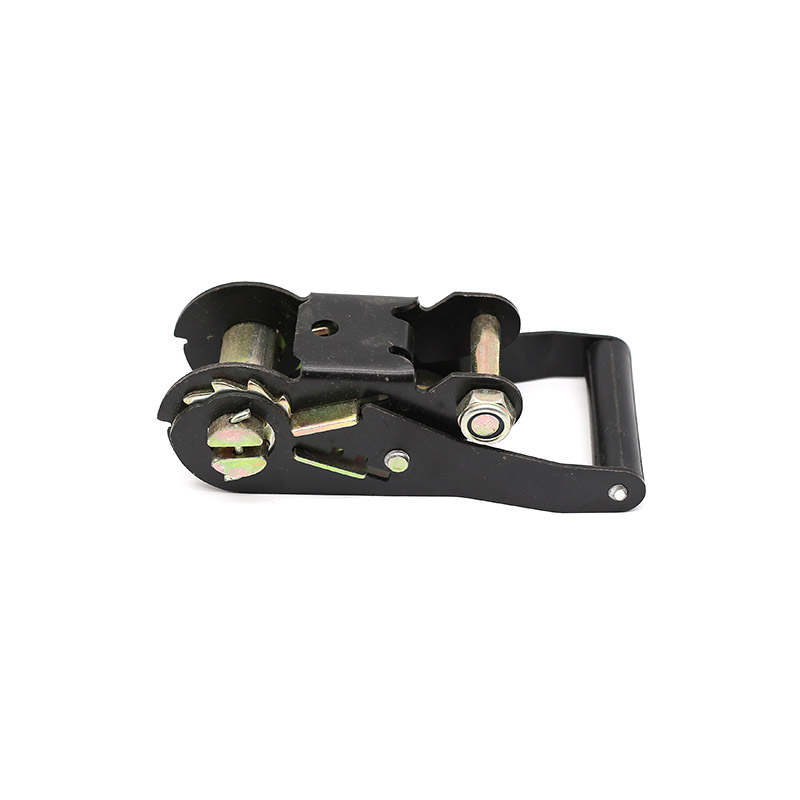

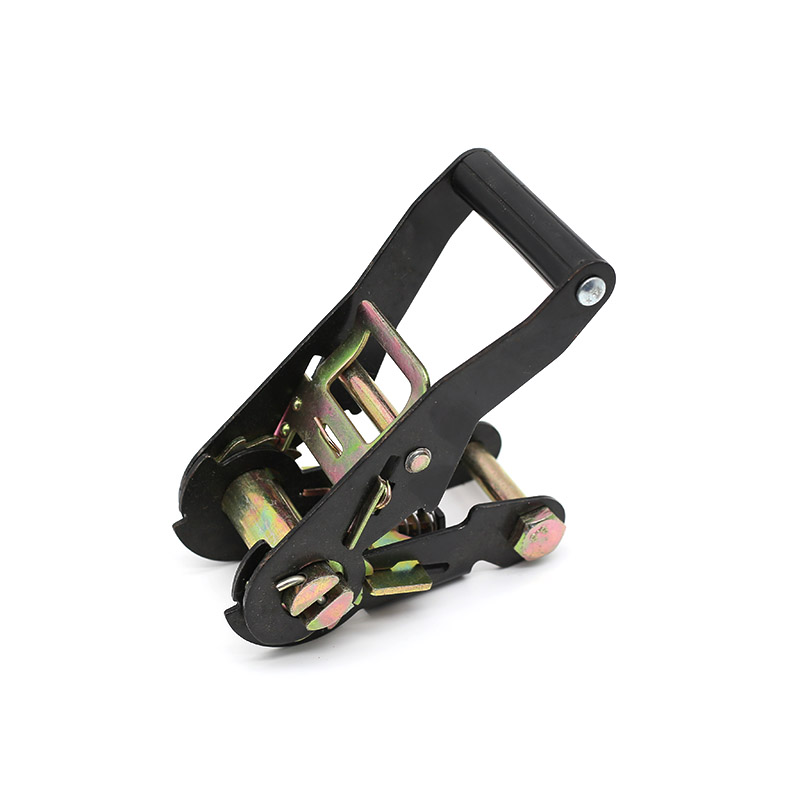

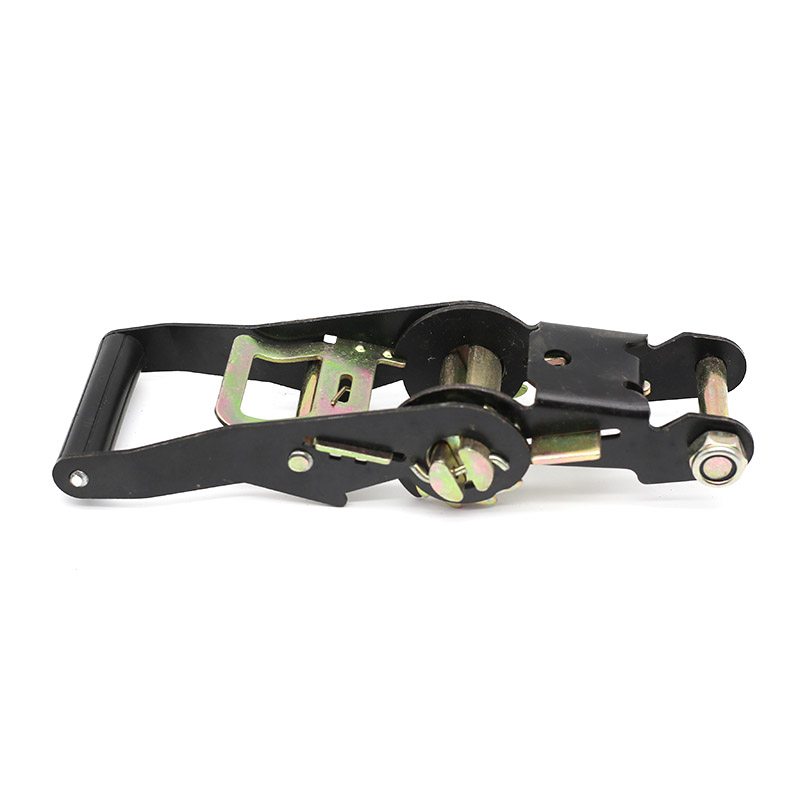

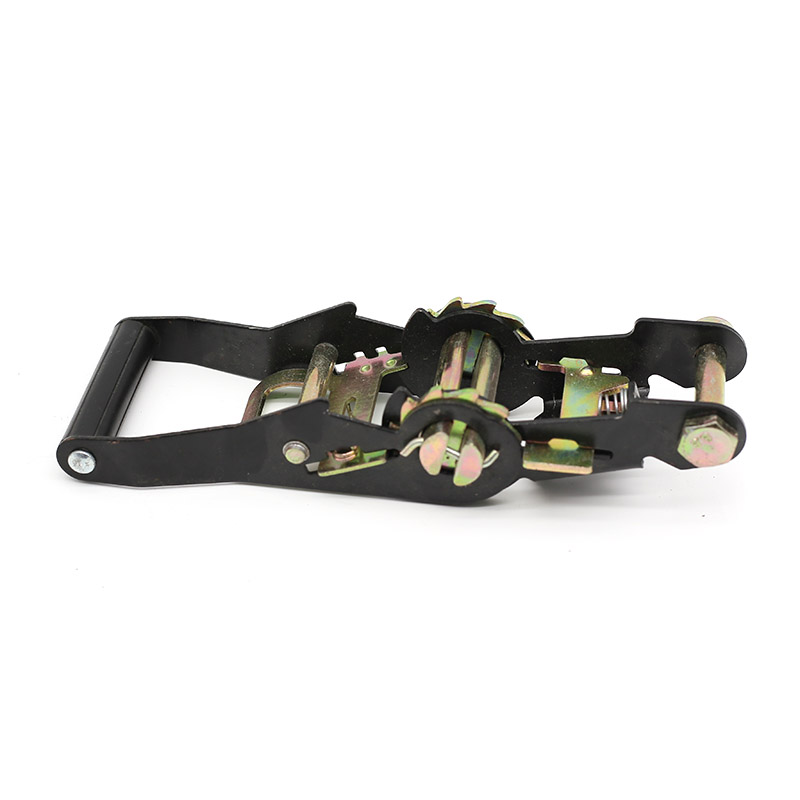

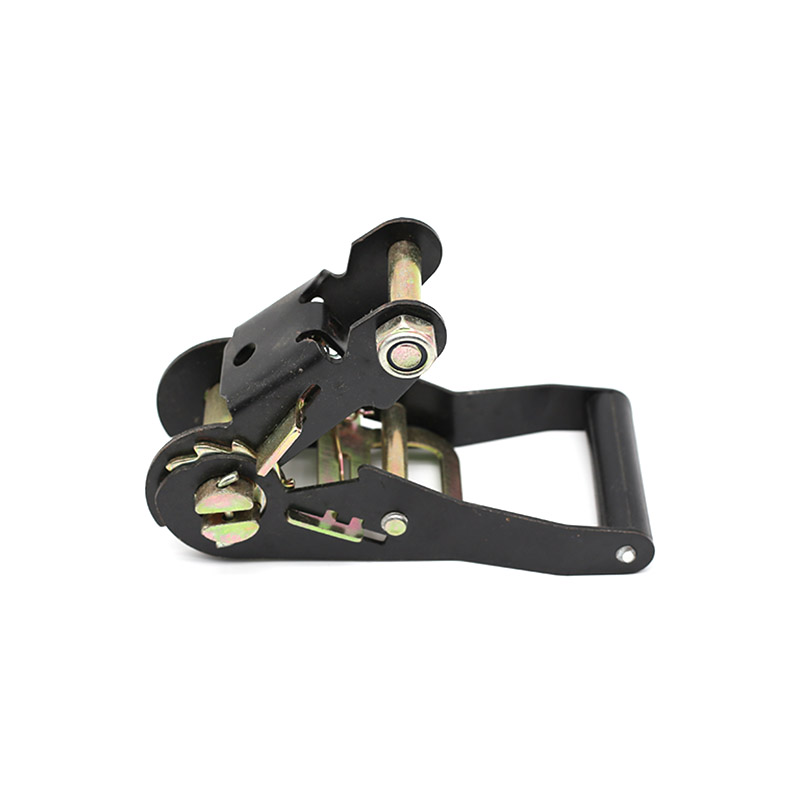

1.5-Inch 3T Vinyl coated Ratchet Buckle

Product Specification:

*Contact us to learn more about our bespoke offerings.

Product Overview

The 1.5-Inch 3T Vinyl Coated Ratchet Buckle is a heavy-duty tensioning device engineered for enhanced durability and user safety. Featuring a robust steel core with a thick, protective vinyl (powder) coating, it is built to resist corrosion, abrasion, and impact. This buckle delivers substantial mechanical leverage, allowing users to apply and lock in high levels of tension on 1.5-inch webbing with ease. Rated for a Working Load Limit (WLL) of 2,200 lbs and a Breaking Strength of 6,600 lbs, it is designed for demanding applications where both maximum holding power and long-term resilience are critical.

Precautions

Strictly Adhere to the 2,200 lbs Working Load Limit
The safety of this system is compromised if the rated capacity is exceeded. Always calculate the total weight and potential dynamic forces of your cargo to ensure it remains within the 2,200 lbs WLL. Verify that all other components (webbing, hooks, anchor points) in your tie-down assembly are rated for an equal or higher capacity.

Perform Detailed Pre-Use Inspections
Before each operation, inspect the buckle thoroughly. Check the vinyl coating for any cracks, chips, or peeling that may expose the underlying steel to corrosion. Examine the ratchet mechanism, pawl, and release lever for signs of wear, damage, or improper function. Ensure the pawl engages securely with the gear teeth. Never use a damaged buckle.

Avoid Extreme Conditions and Improper Use
While the vinyl coating provides excellent protection, avoid prolonged direct exposure to UV radiation, extreme heat, or harsh chemicals which may degrade the coating over time. Do not use the buckle as a makeshift tool (e.g., hammer). Operate the handle smoothly to avoid pinching, and store the buckle in a cool, dry place when not in use.

Product Features

Superior Protection with Vinyl/Powder Coating
The entire buckle is encased in a durable vinyl (powder) coating. This finish provides an exceptional barrier against moisture, chemicals, salt, and abrasion, significantly extending the product's service life and maintaining its appearance in harsh environments far better than standard plating.

High-Capacity Ratcheting System
At its core is a reliable steel ratchet and pawl mechanism. It offers powerful mechanical advantage, allowing users to incrementally take up slack and apply extreme tension—well beyond manual capability—to achieve an immovably secure lash that prevents cargo shift during transit.

Lightweight and Corrosion-Resistant Design
The combination of strong steel construction with a protective vinyl coating results in a component that is both lightweight (553g) for easy handling and highly resistant to rust and corrosion. This makes it ideal for use in marine, industrial, and outdoor settings where exposure to the elements is common.

Applications

  Marine and boating cargo lashing (resists saltwater corrosion)

  Securing construction equipment and materials on job sites

  Heavy-duty transportation and logistics on trucks and trailers

  Agricultural, forestry, and industrial machinery tie-downs
