The 1-Inch 800KG Rubber Coated Ratchet Buckle

Product Specification:

*Contact us to learn more about our bespoke offerings.

Submit Requirements Download Materials
PREV：The 1.5 Inch Rubber Handle Ratchet Belt Buckle
NEXT：The 1-Inch Rubber Coated Ratchet Buckle
Product Overview

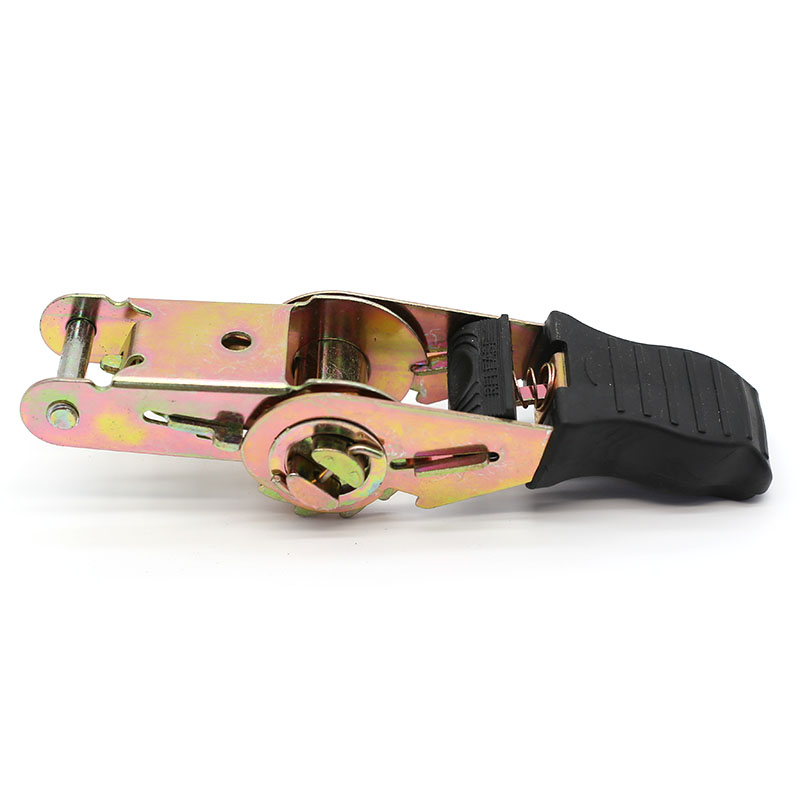

The 1-Inch 800KG Rubber Coated Ratchet Buckle is a compact, user-friendly tensioning device engineered for secure and convenient cargo management. It combines a core of high-strength steel, zinc-plated for corrosion resistance, with a protective rubber coating on the handle for enhanced grip and comfort. Designed specifically for 1-inch webbing, this buckle provides reliable mechanical advantage to tighten straps effectively. With a Working Load Limit (WLL) of 587 lbs and a robust Breaking Strength of 1,760 lbs, it offers dependable performance for light to medium-duty lashing tasks, ensuring cargo remains firmly in place during transport or storage.

Precautions

● Observe Designated Load Capacity
This buckle has a safe Working Load Limit (WLL) of 587 lbs. Never exceed this limit. Ensure the load is properly distributed and that all other components in the securing system—including the webbing, end fittings, and anchor points—are rated for a capacity equal to or greater than the buckle to maintain system integrity and safety.

● Inspect for Damage Before and After Use
Conduct a thorough inspection each time you use the buckle. Check the steel body for cracks, deformation, or significant rust. Examine the ratchet mechanism and pawl for wear or damage, and ensure they engage and release smoothly. Inspect the rubber coating for tears or detachment that could expose the metal underneath or compromise grip.

● Ensure Proper Handling and Storage
Operate the buckle with care, keeping fingers clear of moving parts to avoid pinching. Do not use excessive force on the rubber-coated handle, as it is for gripping, not prying. Avoid exposing the buckle to sharp impacts, extreme temperatures, or corrosive chemicals that could degrade the rubber coating or metal. Store in a clean, dry place.

Product Features

● Comfortable Rubber-Coated Handle
The handle is coated with a layer of durable rubber, providing a secure, non-slip grip that enhances control and comfort during tensioning and release. The coating also offers insulation, protecting hands from temperature extremes and reducing fatigue during repeated use.

● Reliable Ratcheting Mechanism
Equipped with an efficient ratchet and pawl system, this buckle allows for incremental tightening. It provides significant mechanical advantage, enabling the user to easily apply tension far greater than manual pulling strength, ensuring a tight and secure hold on the cargo.

● Compact and Lightweight Steel Construction
Made from sturdy yet lightweight steel, this buckle is easy to handle and store. The zinc plating offers essential corrosion protection, while the 1-inch design makes it perfectly compatible with standard webbing, ideal for assembling or repairing straps for a wide range of lighter-duty applications.

Applications

  Securing cargo on pickup trucks, small trailers, and roof racks

  Fastening equipment and tools for contractors and DIY projects

  Marine and recreational vehicle (RV) accessory tie-downs

  General-purpose bundling and lashing in warehouses, gardens, or for moving
