How to Master Your Load Binder for Secure and Simplified Hauling?

By Joe , Senior Engineer at Force Rigging.

Master Your Chain Load Binder: Secure Loads and Simplify Hauling

In the high-stakes world of heavy-duty hauling, securing cargo safely and efficiently is critical. Chain load binders are the cornerstone of reliable tie-down systems, keeping loads secure during transport. At Force Rigging, we have spent over 15 years designing and testing these tools to meet the demands of fleet managers, logistics coordinators, and haulers. As manufacturers, we often hear questions like, "What do the specs mean?" or "How do I choose the right binder?" This guide, written by our lead engineer Joe (10 years in rigging design), shares practical insights, real-world examples, and professional tips to help you master your chain load binder, streamline operations, and ensure cargo safety.

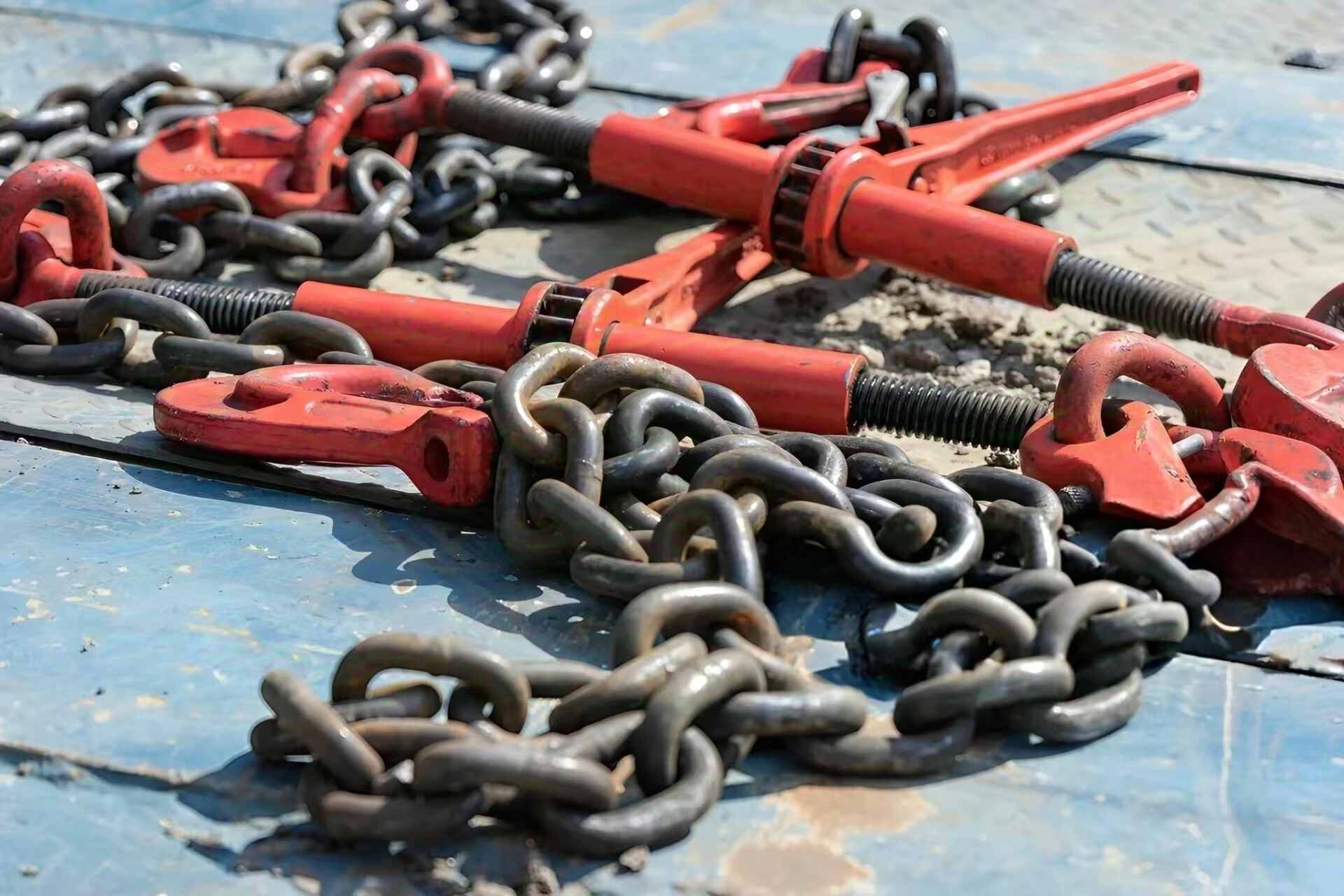

What Are Chain Load Binders?

Chain load binders, or simply chain binders, are mechanical tools used to tighten transport chains around flatbed trailers or any other vehicle carrying cargo. They apply tension so that loads do not shift, and in turn, they comply with safety regulations like those from the Federal Motor Carrier Safety Administration (FMCSA). Key specifications include:

• Working Load Limit (WLL): Ranges from 5,400 lbs (2,450 kg) to 13,000 lbs (5,900 kg), depending on binder model and chain grade (e.g., Grade 70 or Grade 80).
• Chain Size Compatibility: Designed for 5/16” (8 mm) to 1/2” (13 mm) chains.
• Material: Drop-forged steel with powder-coated or galvanized finishes for corrosion resistance.
• Breaking Strength: Typically 3x the WLL (e.g., 16,200 lbs for a 5,400-lb WLL binder).
• Standards Compliance: Certified to CE, GS, ISO 9001, and Web Sling & Tie Down Association (WSTDA) standards.

Force Rigging's binders are created for tough applications, providing assurance in industries like building, farming, and equipment transport.

Real-World Example: Securing a 10-Ton Excavator

Consider a logistics company tasked with transporting a 10-ton excavator on a flatbed trailer across 500 miles. Using Force Rigging's ratchet binders (WLL 9,200 lbs) with Grade 80 chains, the team secured the load with four binders, achieving a combined WLL of 36,800 lbs—well above the FMCSA's requirement of half the cargo weight (10,000 lbs). The ratchet binders' precise tensioning prevented any load shifts, even on uneven terrain, saving the company from potential fines or delays.

Types of Chain Binders

Choosing the right binder depends on your needs. The two primary types are:

How We Test Our Binders

Load Testing: Each binder undergoes a 2x WLL static load test (e.g., 18,400 lbs for a 9,200-lb WLL binder) to ensure safety margins.

Cycle Testing: Ratchet binders are cycled 10,000 times under 50% WLL to verify durability.

Environmental Testing: Binders are exposed to 500 hours of salt spray to confirm corrosion resistance, per ASTM B117 standards.

Field Trials: We partner with logistics firms to test binders in real-world conditions, such as securing 20-ton loads over 1,000-mile routes.

These tests ensure our binders meet CE, GS, and WSTDA standards, giving haulers confidence in their reliability. Read our technical whitepaper for detailed test data.

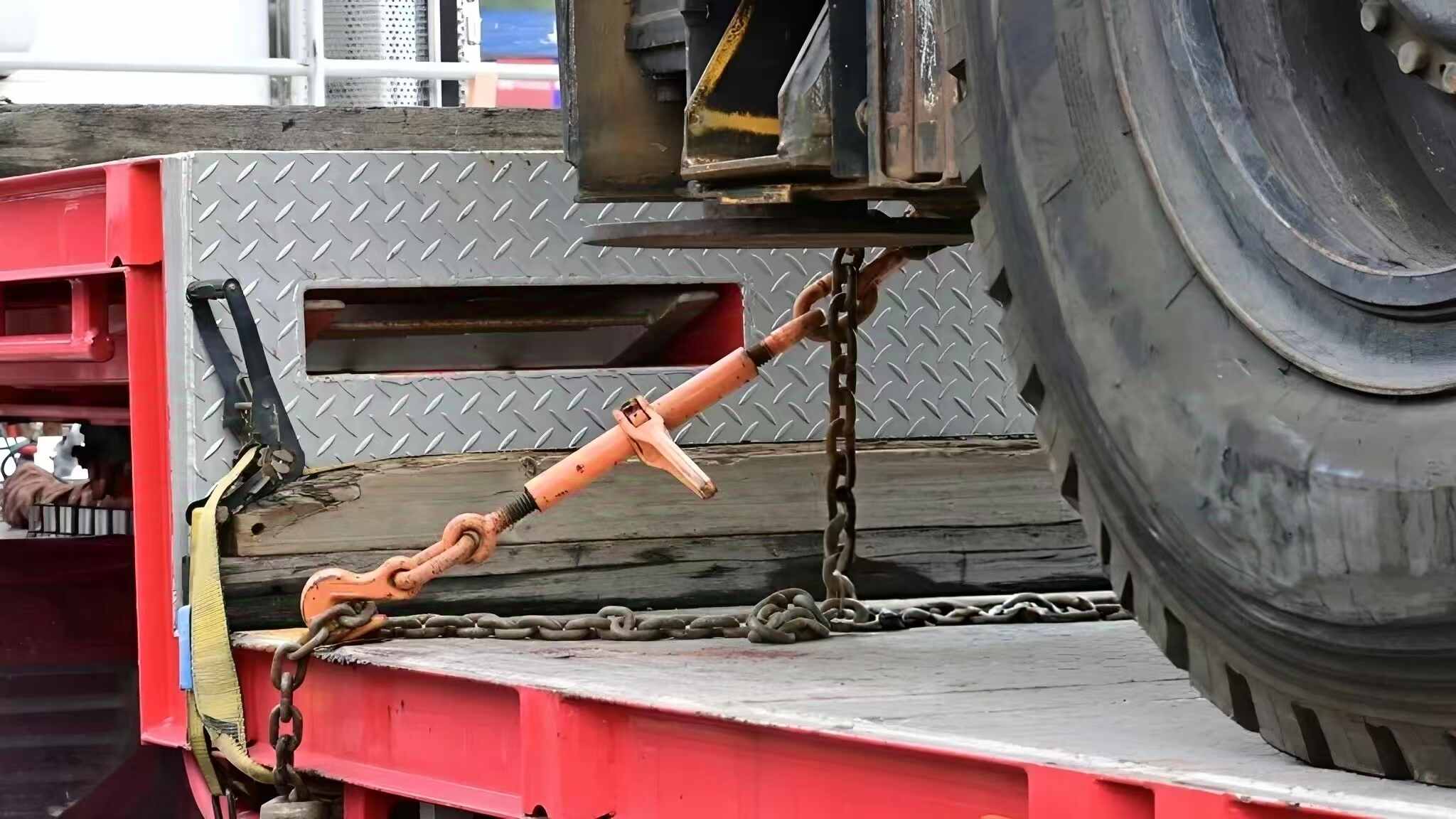

Step-by-Step Guide to Using Chain Binders

• Inspect Equipment: Check binders and chains for wear, cracks, or corrosion. Verify the binder’s WLL (marked on the handle) matches the chain grade and load weight.
• Attach the Binder: Identify anchor points (e.g., D-rings, stake pockets) on the trailer. Hook one chain end to the anchor point and the other to the binder’s forged steel hook. Drape the chain over the load, ensuring even distribution and minimal slack.
• Tighten the Load:

Lever Binders: Pull the lever to tighten; lock it when taut. Apply steady pressure to avoid over-tensioning (max deflection: 15° per FMCSA).

Ratchet Binders: Rotate the handle to ratchet the chain. Adjust in 1/4” increments for precise tension.

• Check and Secure: Confirm even tension and load stability. Recheck hooks and anchor points. Secure excess chain with UV-resistant zip ties to prevent dragging.
• Remove the Binder: Release tension gradually. For lever binders, lift the lever slowly; for ratchet binders, reverse the ratchet. Store binders in a dry, covered area to prevent rust.



When to Replace a Chain Binder

• Cracked or bent hooks (reduces WLL by up to 40%, per WSTDA).
• Worn ratchet gears or lever mechanisms.
• Corrosion compromising structural integrity.
• Faded or missing WLL markings.

Using damaged binders risks load shifts or injuries. Force Rigging's binders are tested to retain 95% strength after 2 years of heavy use, but regular inspections are critical.

Why Choose Force Rigging?

• Materials: Drop-forged steel with powder-coated or galvanized finishes.
• Compliance: Certified to FMCSA, DOT, CE, GS, ISO 9001, and WSTDA standards.
• Innovation: Patented gear-lock ratchet system for smoother, safer tensioning.
• Support: Professional guidance from our team (contact Joe at joe@forcerigging.com or +86 186503637 63).

Our binders have secured over 1 million tons of cargo globally, from construction equipment to agricultural machinery. In December 2024, Force Rigging became a proud member of the WSTDA, reinforcing our commitment to industry excellence.
