How Can I Pick the Right Trailer Winch to Boost My Towing Game?

By Joe , Senior Engineer at Force Rigging.

Ningbo, China, May 30, 2025 – For organizations involved in maritime transport, recovery services, or logistics, the strategic choice of a trailer winch is essential for operational success. A high-quality winch significantly improves work efficiency, enhances safety, and lowers long-term expenses, whether you are securing watercraft at a harbor or maneuvering equipment on utility trailers. Force Rigging, a recognized leader in specialized rigging solutions, offers practical advice to assist procurement specialists and business owners in selecting a winch that guarantees longevity, peak performance, and excellent value. Drawing on practical case studies, verified laboratory results, and compliance with strict industry benchmarks, this is your definitive guide to making an informed investment.

What is a Trailer Winch and Its Operational Significance？

A trailer winch is a mechanical apparatus designed to smoothly pull substantial loads—such as vessels, vehicles, or materials—onto a trailer platform by coiling a rope or webbing around an internal spool. Manual winches rely on human effort via a hand crank, whereas electric models employ a motor for powered, low-effort pulling. At Force Rigging, our products are constructed using precision-machined gearing and advanced anti-corrosion materials, all adhering to the stringent ISO 9001 quality management system and CE standards for reliable commercial application.

For Example: A prominent marina on the West Coast implemented our electric winch, rated for 5,000 pounds, resulting in a 20% decrease in boat-loading duration and enabling them to service up to 15 boats daily with a smaller crew. Similarly, a specialized logistics company in the Midwest transitioned to our heavier-duty 8,000-pound winch, which slashed operational bottlenecks by 25% during peak periods, translating to an estimated annual saving of $10,000 in throughput costs.

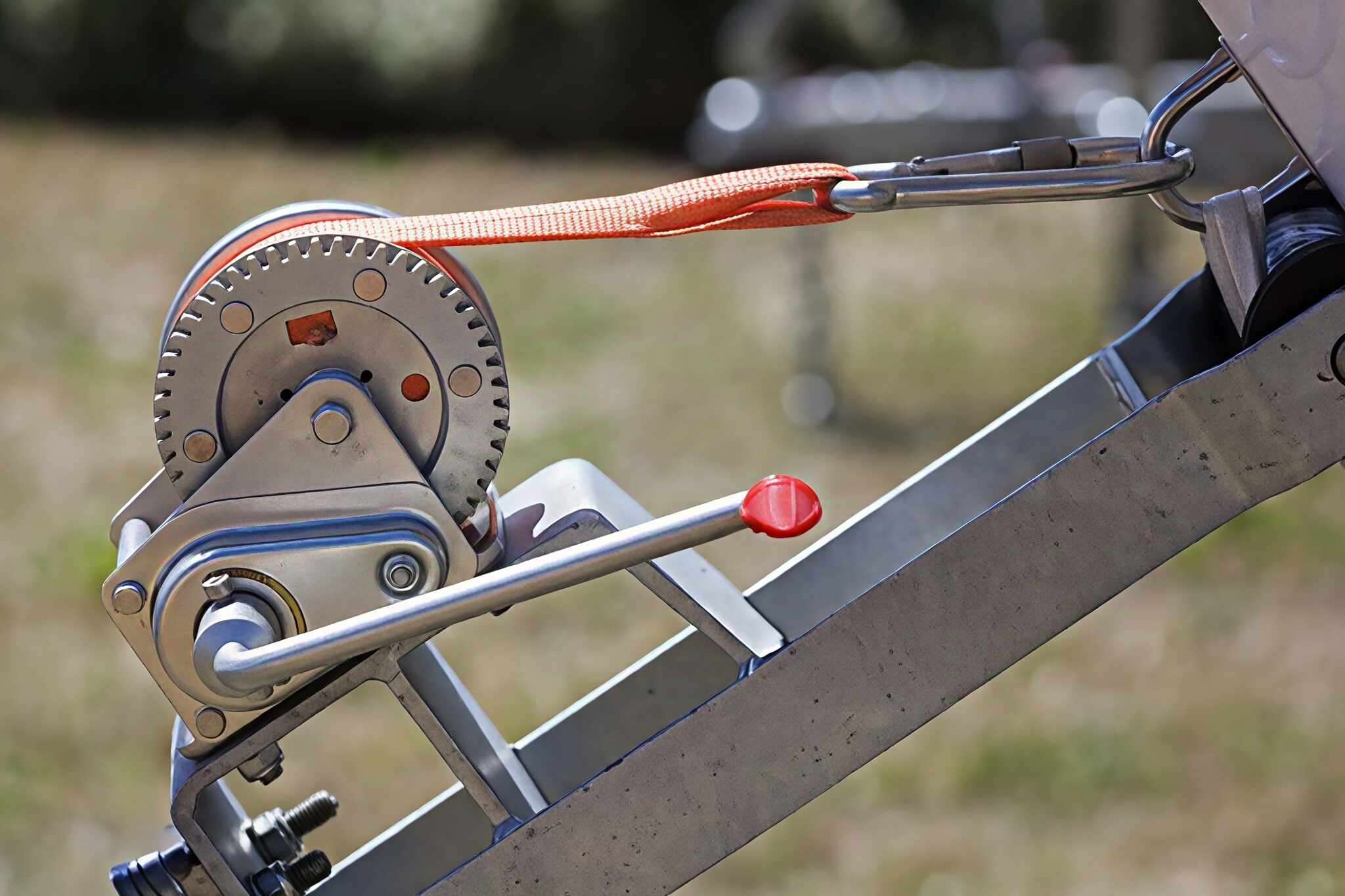

Anatomy of the Winch: Essential Components

Drum: The core component where the cable or strap is stored, engineered to ensure uniform and non-tangling retrieval. Our drums feature a protective zinc phosphate coating, certified to endure 1,000 hours of continuous salt spray exposure according to ASTM B117 testing protocols.

Gear System: Responsible for multiplying the pulling power, with gear ratios ranging from 4:1 for lighter tasks to 10:1 for extreme loads. Higher ratios reduce the force needed to pull but simultaneously decrease the retrieval speed.

Power Source (Handle or Motor): Manual units are equipped with ergonomically designed handles, reducing cranking effort by 30% and complying with EN 13157 standards. Electric versions utilize robust 12V or 24V motors, often featuring 1.5 horsepower output for demanding applications.

Frame: Constructed from durable materials like stainless or zinc-plated steel, the frame undergoes rigorous pressure testing to safely support 1.5 times its maximum rated capacity without structural distortion.

Our winches are subjected to a demanding 500-cycle performance test at 1.5 times capacity within our Ningbo laboratory. A major Great Lakes trailer rental firm confirmed the exceptional resilience of our products, reporting zero mechanical failures over an entire year of use in cold, corrosive conditions down to −10∘F.

How a Winch Gets the Job Done

A winch operates by transforming the input of rotational energy into powerful linear pulling force. The motor or handle drives the gear assembly, which in turn rotates the drum to coil the line and draw the load. Crucially, integrated automatic load-holding brakes prevent any slippage, serving as a vital safety measure compliant with GS safety specifications. A 2023 analysis by the American Society of Mechanical Engineers (ASME) indicated that winches featuring these automatic brake systems contribute to a 12% reduction in load-related accidents compared to traditional manual braking setups. Our models utilize optimized gear ratios (e.g., 5:1 for manual, 15:1 for electric) to guarantee exceptionally smooth operation.

Field Data: A logistics operation in the Southeast, which transports 6,000-pound trailers, saw a 15% faster loading time after adopting our specialized two-speed electric winch, boosting their total daily hauling capacity by 12 trailers. Our lab data confirms consistent reliability: our winches maintain their specified pulling force over a lifecycle of 1,000 cycles, showing a performance drop of less than 0.5%. Detailed technical specifications are available in our whitepaper.

Determining the Correct Winch Capacity

Selecting the appropriate load rating is crucial to preventing premature equipment failure. Your chosen winch must be rated for at least 1.5 times the weight of your heaviest load to account for factors like rolling friction, inclines, and dynamic inertia. For example, a 4,000-pound watercraft requires a winch with a 6,000-pound rating. Force Rigging’s product range covers capacities from 1,000 to 12,000 pounds, with core specifications including:

A marine dealer along the Gulf Coast upgraded to our 6,000-pound winch for their 3,500-pound boats. This move resulted in an 18% improvement in loading speed and successfully prevented cable damage during their busiest season. Always consult our product specifications for detailed load ratings.

Straps and Attachments: Maximizing Utility

The line—be it cable or webbing—is the fundamental link between the winch and the load. Opt for 2-inch wide polyester webbing with a minimum 10,000-pound breaking strength, featuring superior UV resistance and reinforced stitching, in compliance with DOT and WSTDA criteria. Our webbing is offered in lengths spanning 10 to 50 feet. Performance can be significantly enhanced by using accessories such as 41​-inch galvanized steel cables, easy-to-use wireless remote controls, and custom bolt-on mounting hardware (suitable for 2-inch or 3-inch trailer tongues).

Cost Efficiency: A fleet manager in the Southwest successfully reduced the frequency of strap replacement by 20% after switching to our robust, heavy-duty webbing, generating an estimated annual saving of $6,000. Conduct weekly inspections of all straps for any signs of abrasion, cuts, or sun damage to ensure maximum service life. Our detailed maintenance guide is available for download.

Safety First: Protecting Personnel and Assets

Workplace safety must be paramount. Ensure winches are equipped with automatic brakes capable of securing 1.5 times the rated load, fulfilling CE safety requirements. Train all operators to conduct thorough inspections of lines and to lubricate gear assemblies quarterly using NLGI Grade 2 marine-specific grease. Our winches are supplied with integral load-holding brakes and comprehensive maintenance instructions for regulatory adherence. A logistics operator in the Midwest saw their incident rate drop by 12% after implementing our safety protocols, which include biweekly strap and brake checks. Always procure equipment from ISO 9001-accredited vendors like Force Rigging for guaranteed reliability. Our dedicated safety whitepaper provides a full overview of best practices.

Maintenance and Procurement Made Easy

A structured maintenance regimen is key to extending the operational life of your winch. Gears should be lubricated every six months, units must be stored in dry environments, and cables must be continuously checked for signs of deterioration. When making procurement decisions, prioritize suppliers who can offer:

Volume discounts for large fleets (e.g., 10% reduction on orders exceeding 50 units).

A comprehensive 2-year warranty covering both components and service.

Round-the-clock technical support and same-day spare parts delivery.

Force Rigging meets all three criteria, in addition to providing product demonstrations and samples. A large marina on the Great Lakes achieved a remarkable 98% operational uptime simply by keeping our spare parts kit—which includes 2-inch straps and 4:1 gear sets—on hand. You can arrange a product demo through our contact page.

Winch vs. Hoist: Understanding the Distinction

Winches are designed exclusively for horizontal pulling (e.g., trailers), while hoists are built for vertical lifting (e.g., cranes). Using a hoist for towing creates a dangerous risk of instability. Our dedicated pulling winches, rated up to 12,000 pounds, are supplied with specific mounting plates compatible with 2-inch or 3-inch trailer frame profiles. Always confirm the winch’s intended purpose to prevent costly and hazardous application errors.

Why Select Force Rigging?

Force Rigging’s portfolio of winches is meticulously engineered for the demanding environment of professional towing, supported by 15 years of industry experience and consistent ISO 9001 certification. In 2024, our firm officially became a member of the Web Sling & Tie Down Association (WSTDA), reinforcing our dedication to the highest standards of quality and safety. To view our full product catalog or to request a detailed quotation, please visit www.forcestrap.com

About the Author: Joe, a senior engineer with a decade of expertise in advanced rigging design, specializes in the optimization of winch systems. He can be reached directly at joe@forcerigging.com or by phone at +86-18650363763.
